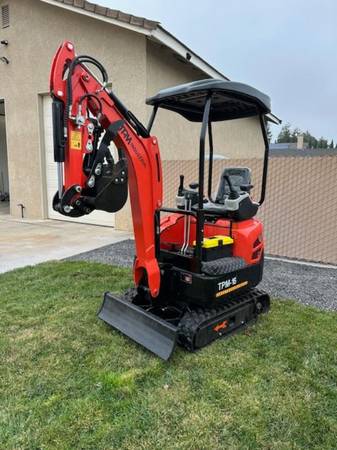

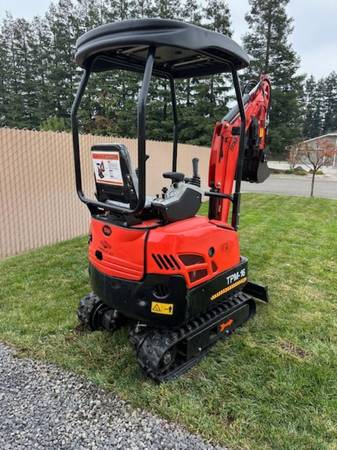

2025 Mini Excavator TPM-16 BRAND NEW - $5,500
condition:
new
engine hours (total):
2
make / manufacturer:
TPM Industrial
model name / number:
TPM-16
QR Code Link to This Post
ASKING $5,500
CALL 209-596-0051
TPM Industrial
Features

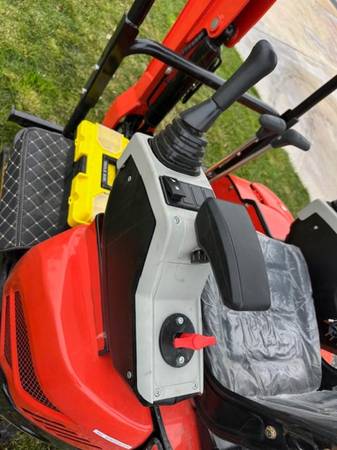

Comfortable operation: the hydraulic pilot system makes the control levers easy to maneuver and operate smoothly.
Four-Post Rollover Protection Structure: Enhances safety during Operation.
Hydraulic Thumb: Provides added versatility for handling materials
Inverted Arm: Update the working performance, reach more far and dig deeper.
Efficient Performance: Ideal for various construction and agricultural tasks.
User-Friendly Design: Compact and ergonomic for easy operation and maneuverablility.
Versatile Functionality: Handles leveling, backfilling and stability tasks.
Multipurpose Attachments: Interchangeable for digging, crushing and more.
Enhanced Mobility: Rubber crawlers offer low ground pressure and superior traction.
Specs
Basic Performance:
Machine Weight: Canopy 950 kg - 2070 lb
Operation Mode: Mechanical Handle
Bucket Capacity: 0.025 m³
Travel Speed: 0-2.5 Km/h (Low/High)
Gradeability: 35%
Ground Pressure: 32 Kpa
Maximum Digging Radius: 2800 mm
Maximum Digging Depth: 1700 mm
Maximum Digging Height: 2710 mm
Maximum Unloading Height: 1850 mm
Body Dimensions:
Transport Length: 2140 mm
Chassis Width: 1100 mm
Transport Width: 930 mm
Transport Height with Canopy: 2180 mm
Ground Clearance of Upper Platform: 380 mm
Bucket Width: 400 mm
Dozer Blade Width: 1100 mm
Engine Specifications
Brand: BRIGGS & STRATTON
Model: B&S 13.5HP
Maximum Horsepower: 13.5 ps
Maximum Power: 10 Kw
Maximum Speed: 3600 rpm
Displacement: 420 CC
Number of Cylinders: 1
Cooling Method: Air-cooled
Engine Oil Replacement Volume: 1.1 L
Fuel Type: Gasoline
Theoretical Fuel Consumption: 0.5-1.2 L/h
Hydraulic System:
Main Pump Type/Model: Gear Pump/06
Main Pump Brand: Tianjin
Rated Setting Pressure: 25 Mpa
Maximum Flow Rate of Main Pump: 23.4 L/min
Multi-Way Valve: 8-Way Multi-Valve
Multi-Way Valve Brand: Jiangsu JL
Rated Setting Pressure: 16 Mpa
Maximum Setting Pressure: 16 Mpa
Travel Hydraulic Motor Type: BM6K-315
Travel Motor Brand: Taiheng
Motor Displacement: 315
Swing Hydraulic Motor Type: BM2-315
Displacement: 315
Tension Method: Mechanical Tension
Track Details:
Rubber Track: 180x72x37 (Width * Pitch * Number of Links)
Rubber Block: Yes
Tank Capacities:
Fuel Tank: 6.6 L
Hydraulic Oil Tank: 18 L
Suitable for landscaping , construction, agriculture and utility work.
Contractors, farmers and rental companies benefit from its reliabliity and efficiency.
